iDEAL Elec-Hydra UTV Lift w/Integrated Motor & Retractable Ramp

$3,064.00

19 in stock

SKU: iDEAL-Elec Category:
Description

Product Description

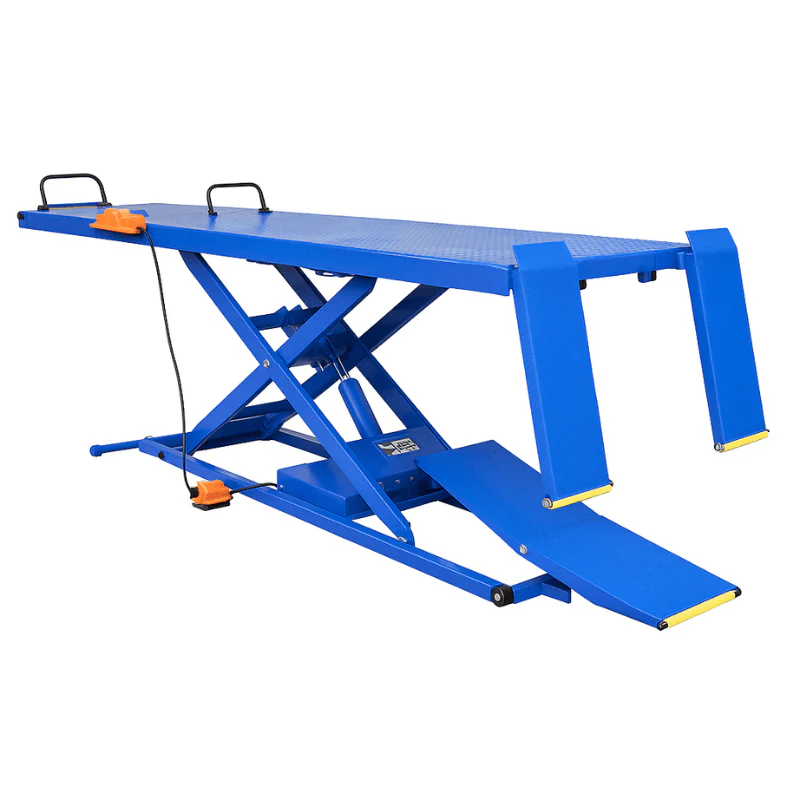

The iDEAL® U-2200-IEH UTV Lift is a powerful and versatile service lift engineered to handle UTVs, ATVs, trikes, and motorcycles with ease. Rated at 2,200 lbs, it features a wide 65″ platform and removable UTV side extensions with an integrated fold-down rear service panel, improving technician access and productivity.

An integrated 110V electric-hydraulic power unit delivers smooth, fast, and safe lifting. Operation is simplified with a hand-held control pendant that raises, lowers into the locks, and lowers—eliminating the need to manually disengage safety latches. With a retractable ramp system and multiple lock positions, this lift is an excellent all-around solution for powersports service.

Note: Wheel chock and vise are sold separately.


Key Features

  • 2,200 lb lifting capacity

  • NEW retractable ramp system

  • 47″ lifting rise

  • 110V integrated electric/hydraulic power unit

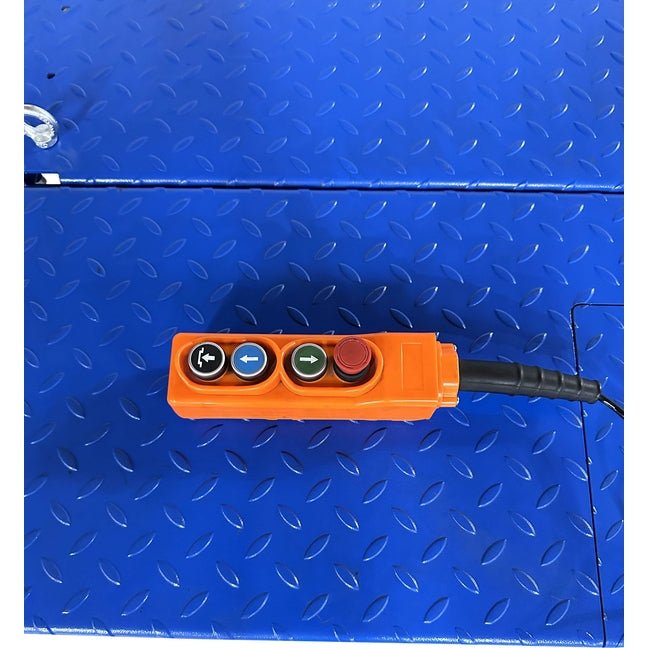

  • Single-point hand-held control pendant (raise, lock, lower)

  • Six locking positions

  • Extended 27.5″ full-width approach ramp

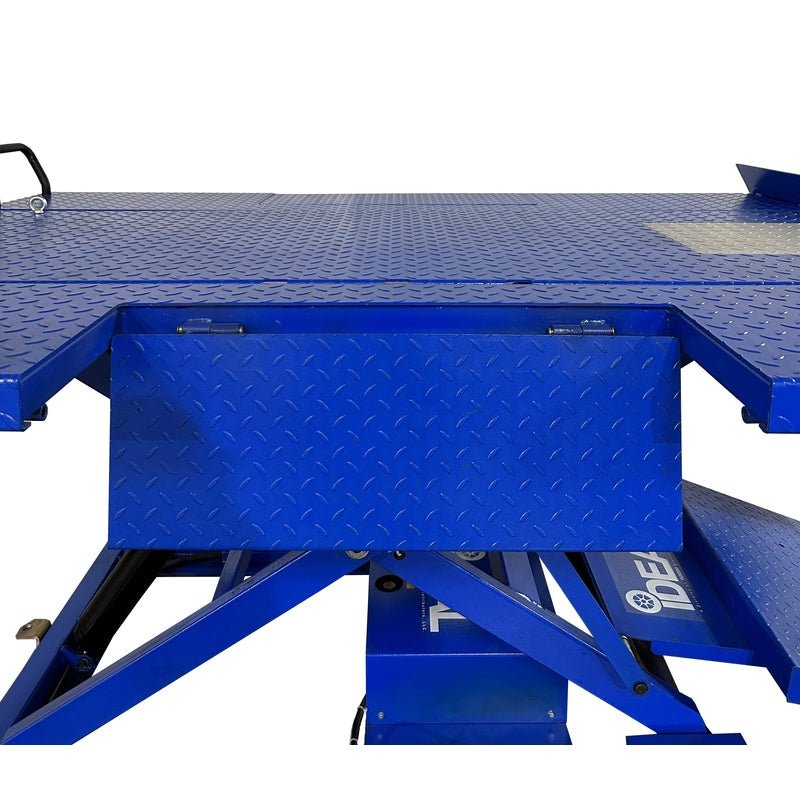

  • Rear drop-down service panel

  • Wheel stops included

  • Large table: 65″ × 88.6″

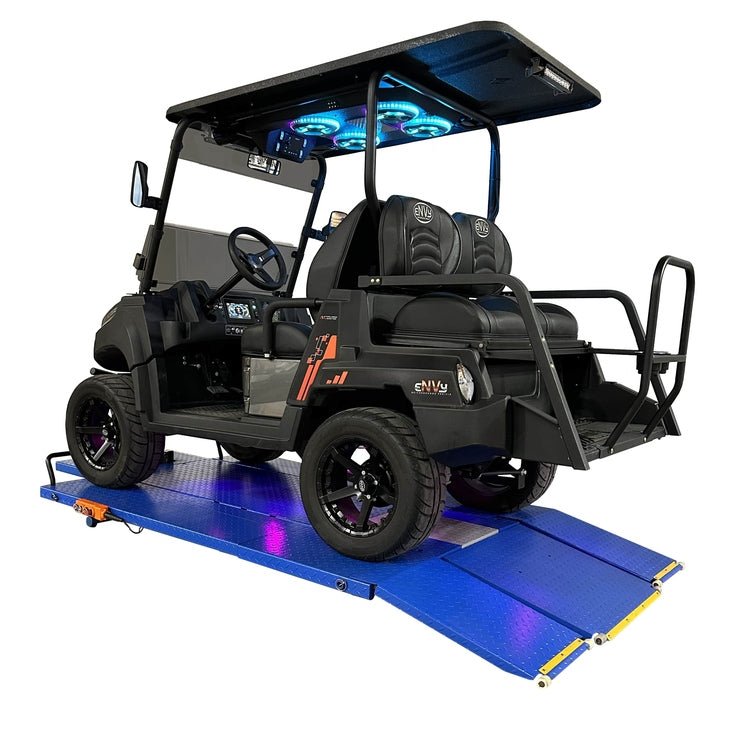

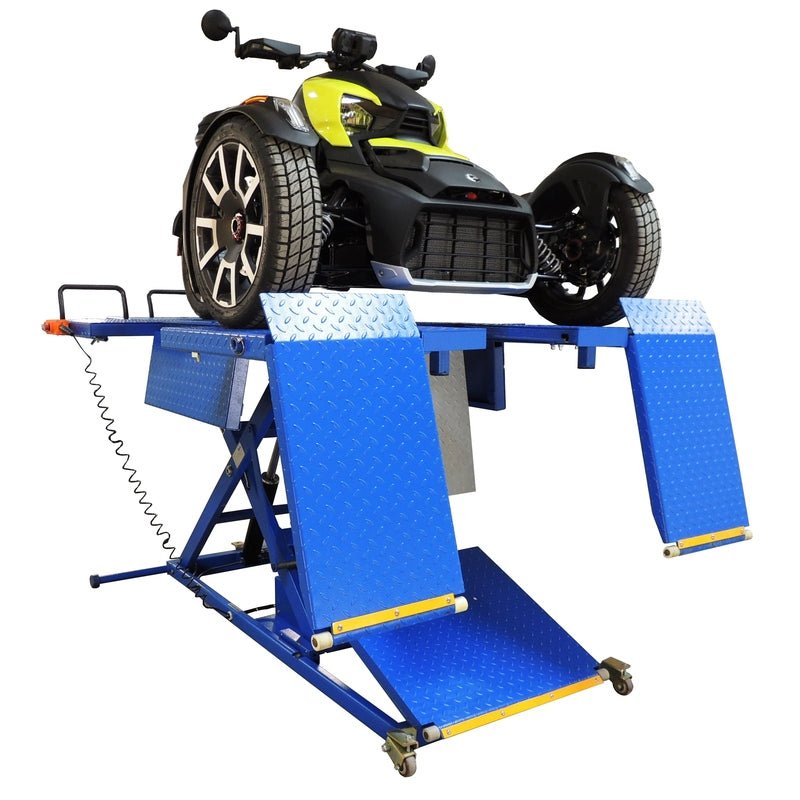

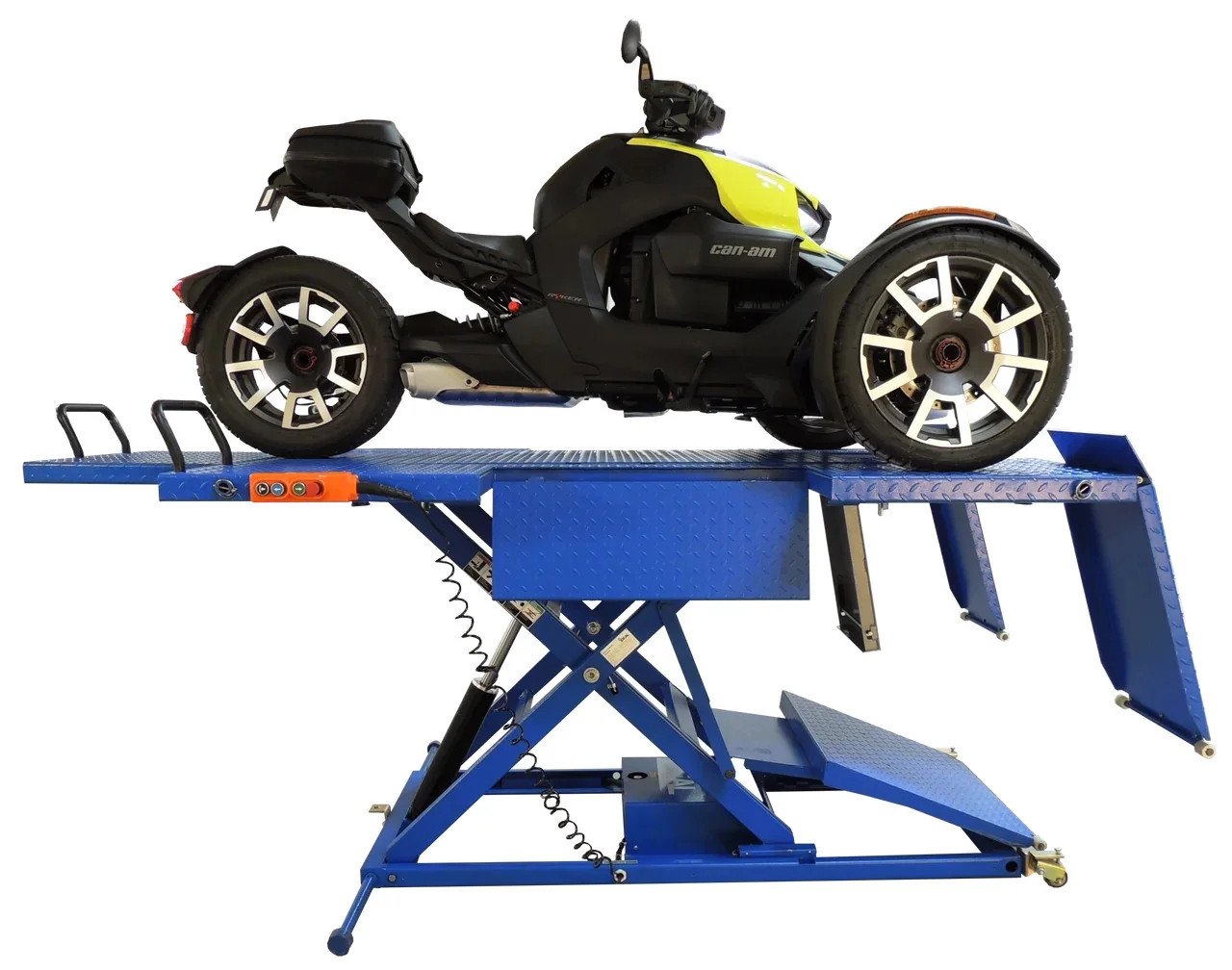

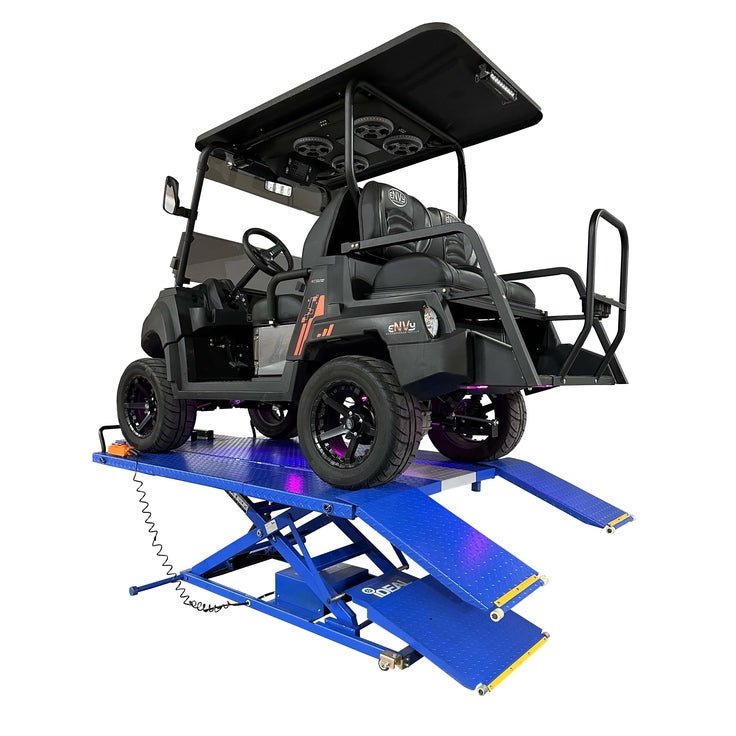

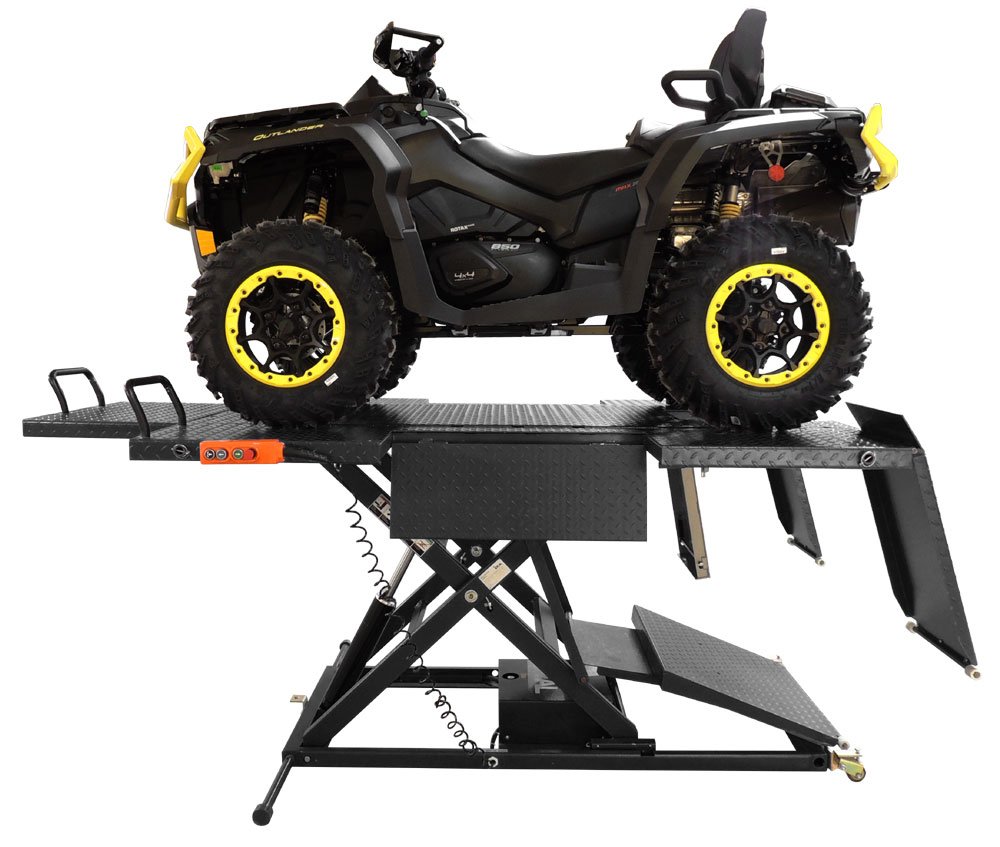

  • Ideal for UTVs, ATVs, trikes, and motorcycles


Specifications

  • Capacity: 2,200 lbs

  • Maximum Lift Height: 47.2″

  • Minimum Height: 7″

  • Platform Width: 65″

  • Platform Length: 88.6″

  • Overall Width (incl. stabilizer bar): 65″

  • Overall Length (incl. ramp): 116.5″

  • Power Supply: 110V / 60Hz / Single Phase / 18A

  • Rise Time: 30 seconds

  • Descent Time: 30 seconds

Accessories: Wheel chock and vise sold separately
