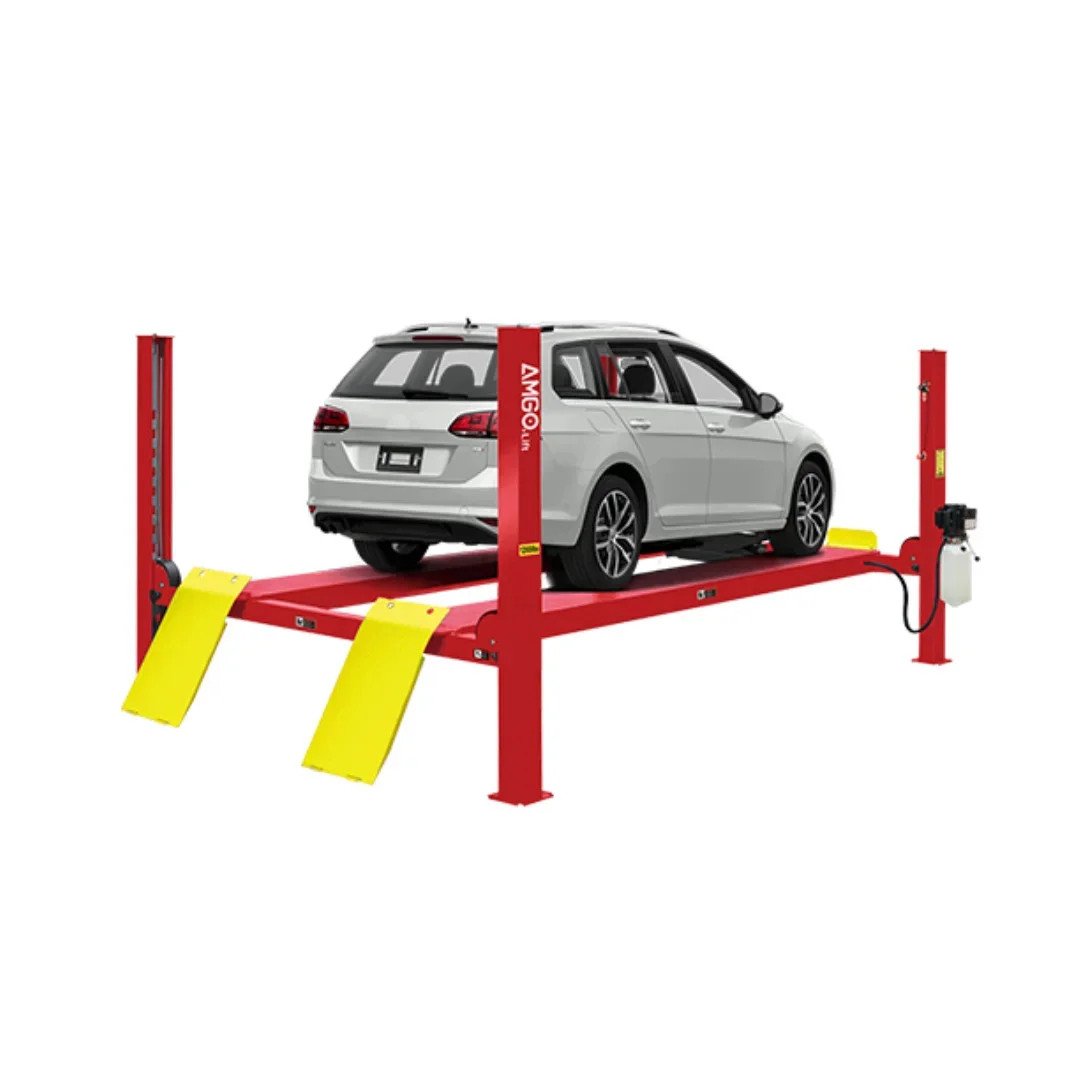

AMGO PRO-12 12,000 lbs 4 Post Lift

The AMGO PRO-12 Four-Post Lift is a commercial-grade service lift engineered for daily, high-demand operation. With a 12,000 lb lifting capacity, it is ideal for servicing cars, SUVs, pickups, and vans. Built with rugged, heavy-duty construction, the PRO-12 delivers long-term durability, operational stability, and maximum safety—making it an excellent choice for professional service shops and high-end garages.

A standout feature is stepless width adjustment technology, allowing the lift to accommodate a wide range of wheel tracks. Combined with premium safety systems and precision-engineered hydraulics, the PRO-12 ensures smooth, reliable lifting performance throughout the workday.

Key Features

• 12,000 lb lifting capacity

• Air-released safety lock for convenient and reliable operation

• Mechanical self-lock with cable-breaking protection

• 1/2″ aircraft-quality steel cables

• Skid-proof diamond platforms

• High-quality hydraulic cylinders built to strict standards

• Adjustable lifting platforms

  • Off-side platform can be shifted left or right as needed

  • Standard platform spacing: 43 1/4″ (1100 mm)

  • Maximum platform spacing: 51 1/8″ (1300 mm)

• Flow restrictors in cylinders for stable, smooth lifting speed

• CE Approved and Certified

• Meets or exceeds European Standard EN-1493

Specifications

• Lifting Capacity: 12,000 lbs

• Lift Type: Four-post service lift

• Platform Surface: Skid-proof diamond steel

• Cable System: 1/2″ aircraft-grade steel cables

• Platform Adjustment: Stepless width adjustment

• Safety System: Mechanical self-lock + cable-break protection

• Certification: CE / EN-1493 compliant

(Refer to the official dimensional diagram for full measurements and layout details.)

Shipping Information

The PRO-12 ships in palletized and containerized configurations. Large painted beams, power unit components, and accessories are securely packed to ensure safe transport and efficient unloading.

Downloads

• AMGO PRO-12 12,000 lbs Four-Post Lift – Installation & Operation Manual (PDF)
